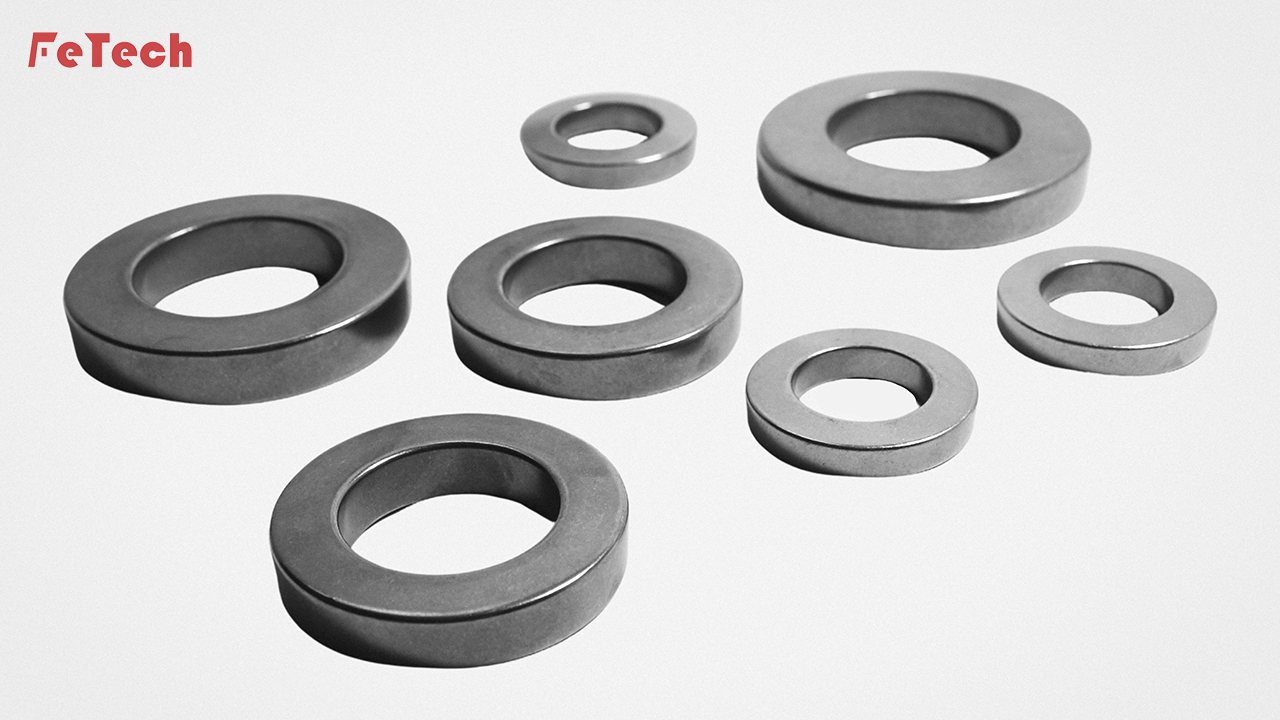

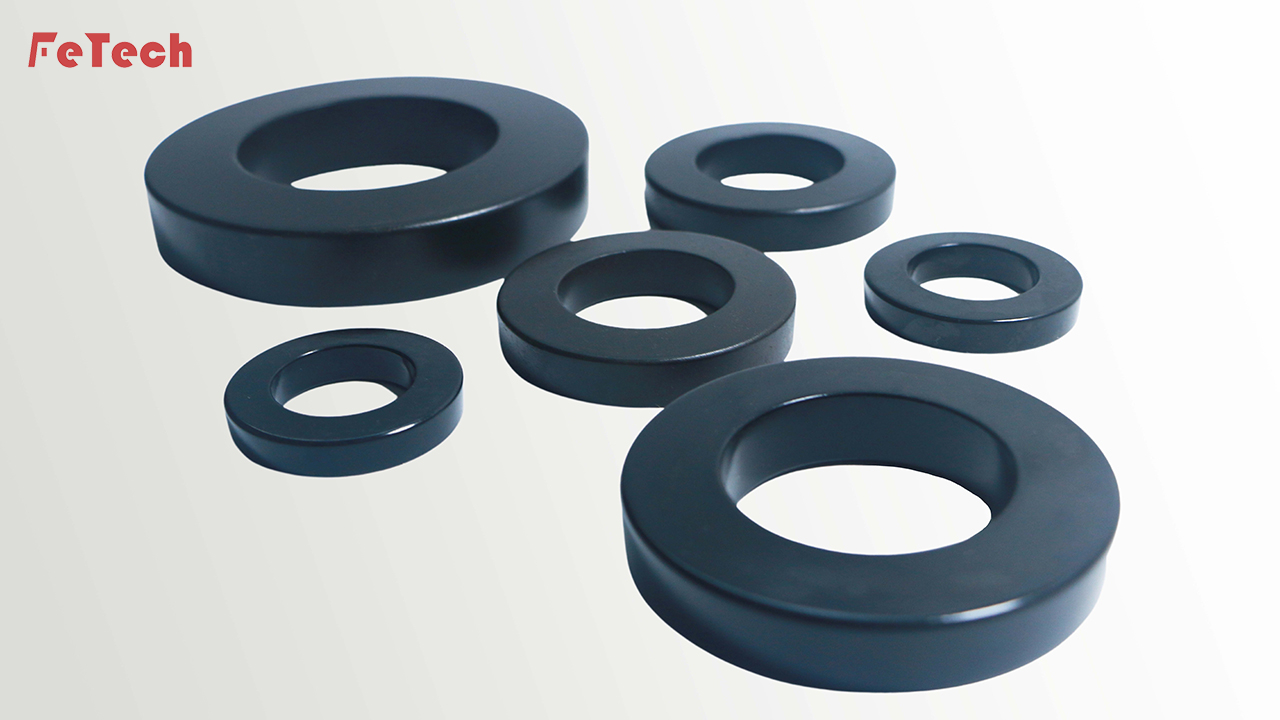

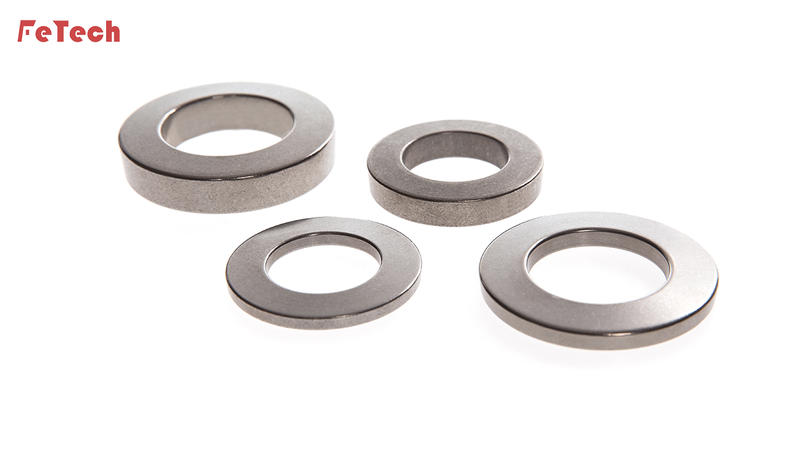

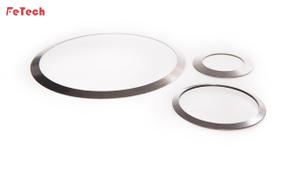

FeTech Flange Washers help create a more reliable flange assembly by maintaining residual gasket/bolt load and evening load distribution. They are specific apply to petrochemical/oil & gas industries, which utilize piping flange joint assemblies, dictating a low tolerance for fugitive emissions.
FeTech Flange Washers help create a more reliable flange assembly by maintaining residual gasket/bolt load and evening load distribution. They are specific apply to petrochemical/oil & gas industries, which utilize piping flange joint assemblies, dictating a low tolerance for fugitive emissions. Flange live loading, which is a process imperative to control gasket leaks in piping and refining operations, depends on the mission-critical performance. The flange washers are designed to maintain sufficient bolt tension and resultant gasket stresses in high temperature and high pressure applications where safety and emission containment take priority.
Sizes and Materials
H13 Tool Steel
17-7 Stainless Steel
Nickel Alloy Steel
* Inconel X-750
* Inconel 718
* Nimonic 90
Features & Benefits
● Eliminate the effects of differential thermal expansion
● No need to be re-torqued once installed
● Increase the elasticity of the bolting system by a factor of 7-15 times
●
● Maintain bolt integrity by maintaining the contact pressure between the flange and gasket surfaces
● Professional engineers supporting
FeTech Flange Washers help create a more reliable flange assembly by maintaining residual gasket/bolt load and evening load distribution. They are specific apply to petrochemical/oil & gas industries, which utilize piping flange joint assemblies, dictating a low tolerance for fugitive emissions. Flange live loading, which is a process imperative to control gasket leaks in piping and refining operations, depends on the mission-critical performance. The flange washers are designed to maintain sufficient bolt tension and resultant gasket stresses in high temperature and high pressure applications where safety and emission containment take priority.
Sizes and Materials
H13 Tool Steel
17-7 Stainless Steel
Nickel Alloy Steel
* Inconel X-750
* Inconel 718
* Nimonic 90
Features & Benefits
● Eliminate the effects of differential thermal expansion
● No need to be re-torqued once installed
● Increase the elasticity of the bolting system by a factor of 7-15 times
●
● Maintain bolt integrity by maintaining the contact pressure between the flange and gasket surfaces
● Professional engineers supporting
Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-H13-001 1/2'' 0.515 1.011 0.12 0.133 0.013 4245 FT-H13-002 1/2'' 0.515 1.011 0.141 0.153 0.012 6367 FT-H13-003 1/2'' 0.515 1.011 0.163 0.173 0.01 8490 FT-H13-004 5/8'' 0.644 1.148 0.142 0.157 0.015 6780 FT-H13-005 5/8'' 0.644 1.148 0.173 0.185 0.012 10170 FT-H13-006 5/8'' 0.644 1.148 0.2 0.211 0.011 13560 FT-H13-007 3/4'' 0.773 1.37 0.173 0.19 0.017 10020 FT-H13-008 3/4'' 0.773 1.37 0.211 0.225 0.014 15030 FT-H13-009 3/4'' 0.773 1.37 0.243 0.256 0.013 20040 FT-H13-010 7/8'' 0.901 1.59 0.204 0.224 0.02 13860 FT-H13-011 7/8'' 0.901 1.59 0.248 0.265 0.017 20790 FT-H13-012 7/8'' 0.901 1.59 0.285 0.3 0.015 27720 FT-H13-013 1'' 1.03 1.81 0.233 0.256 0.023 18180 FT-H13-014 1'' 1.03 1.81 0.283 0.302 0.019 27270 FT-H13-015 1'' 1.03 1.81 0.326 0.342 0.016 36360 FT-H13-016 1 1/8'' 1.155 2.025 0.266 0.291 0.025 23700 FT-H13-017 1 1/8'' 1.155 2.025 0.323 0.344 0.021 35550 FT-H13-018 1 1/8'' 1.155 2.025 0.372 0.39 0.018 47400 FT-H13-019 1 1/4'' 1.281 2.24 0.206 0.24 0.03 20000 FT-H13-020 1 1/4'' 1.281 2.31 0.301 0.33 0.029 30000 FT-H13-021 1 1/4'' 1.281 2.31 0.376 0.4 0.024 45000 FT-H13-022 1 1/4'' 1.281 2.31 0.422 0.443 0.021 60000 FT-H13-023 1 3/8'' 1.406 2.47 0.332 0.362 0.03 36990 FT-H13-024 1 3/8'' 1.406 2.47 0.404 0.429 0.025 55485 FT-H13-025 1 3/8'' 1.406 2.47 0.465 0.487 0.022 73980 FT-H13-026 1 1/2'' 1.531 2.68 0.364 0.396 0.032 44760 FT-H13-027 1 1/2'' 1.531 2.68 0.443 0.47 0.027 67140 FT-H13-028 1 1/2'' 1.531 2.68 0.51 0.533 0.023 89520 FT-H13-029 1 5/8'' 1.649 2.95 0.4 0.435 0.035 53400 FT-H13-030 1 5/8'' 1.649 2.95 0.487 0.516 0.029 80100 FT-H13-031 1 5/8'' 1.649 2.95 0.56 0.586 0.026 106800 FT-H13-032 1 3/4'' 1.774 3.17 0.432 0.47 0.038 62400 FT-H13-033 1 3/4'' 1.774 3.17 0.526 0.557 0.031 93600 FT-H13-034 1 3/4'' 1.774 3.17 0.605 0.633 0.028 124800 FT-H13-035 1 7/8'' 1.899 3.389 0.465 0.505 0.04 72300 FT-H13-036 1 7/8'' 1.899 3.389 0.566 0.599 0.033 108450 FT-H13-037 1 7/8'' 1.899 3.389 0.581 0.614 0.033 114475 FT-H13-038 2'' 2.024 3.6 0.498 0.54 0.042 83500 FT-H13-039 2'' 2.024 3.6 0.606 0.641 0.035 124650 FT-H13-040 2'' 2.024 3.6 0.622 0.656 0.034 131575 FT-H13-041 2 1/8'' 2.156 3.773 0.531 0.572 0.041 96300 FT-H13-042 2 1/4'' 2.281 4.04 0.563 0.61 0.047 106800 FT-H13-043 2 1/4'' 2.281 4.04 0.686 0.725 0.039 160200 FT-H13-044 2 1/4'' 2.281 4.04 0.704 0.742 0.038 169100 FT-H13-045 2 1/2'' 2.531 4.483 0.629 0.681 0.052 133200 FT-H13-046 2 1/2'' 2.531 4.483 0.766 0.809 0.043 199800 FT-H13-047 2 1/2'' 2.531 4.483 0.786 0.828 0.042 210900 FT-H13-048 2 3/4'' 2.781 4.92 0.695 0.752 0.057 162900 FT-H13-049 2 3/4'' 2.781 4.92 0.847 0.894 0.047 244350 FT-H13-050 2 3/4'' 2.781 4.92 0.869 0.915 0.046 257925 FT-H13-051 3'' 3.031 4.94 0.5 0.568 0.068 84110 FT-H13-052 3'' 3.031 5.36 0.761 0.822 0.061 195300 FT-H13-053 3'' 3.031 5.36 0.951 1.003 0.051 292950 FT-H13-054 3'' 3.031 5.36 0.952 1.002 0.05 309225 FT-H13-055 3 1/4'' 3.306 5.81 0.77 0.837 0.067 202050 FT-H13-056 3 1/4'' 3.306 5.81 0.98 1.033 0.053 332872 FT-H13-057 3 1/4'' 3.306 5.81 1.037 1.087 0.05 551806 FT-H13-058 3 1/2'' 3.53 6.125 0.841 0.901 0.06 240354 FT-H13-059 3 1/2'' 3.53 6.125 1.024 1.08 0.056 360330 FT-H13-060 3 1/2'' 3.53 6.125 1.179 1.227 0.048 480458 FT-H13-061 3 3/4'' 3.812 6.671 0.871 0.948 0.077 274250 FT-H13-062 3 3/4'' 3.812 6.671 1.062 1.126 0.064 412800 FT-H13-063 3 3/4'' 3.812 6.671 1.222 1.278 0.056 550080 FT-H13-064 4'' 4.054 7.135 0.97 1.05 0.08 321415 FT-H13-065 4'' 4.054 7.135 1.18 1.247 0.067 481141 FT-H13-066 4'' 4.054 7.135 1.359 1.417 0.058 642053
Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-H13-001 1/2'' 0.515 1.011 0.12 0.133 0.013 4245 FT-H13-002 1/2'' 0.515 1.011 0.141 0.153 0.012 6367 FT-H13-003 1/2'' 0.515 1.011 0.163 0.173 0.01 8490 FT-H13-004 5/8'' 0.644 1.148 0.142 0.157 0.015 6780 FT-H13-005 5/8'' 0.644 1.148 0.173 0.185 0.012 10170 FT-H13-006 5/8'' 0.644 1.148 0.2 0.211 0.011 13560 FT-H13-007 3/4'' 0.773 1.37 0.173 0.19 0.017 10020 FT-H13-008 3/4'' 0.773 1.37 0.211 0.225 0.014 15030 FT-H13-009 3/4'' 0.773 1.37 0.243 0.256 0.013 20040 FT-H13-010 7/8'' 0.901 1.59 0.204 0.224 0.02 13860 FT-H13-011 7/8'' 0.901 1.59 0.248 0.265 0.017 20790 FT-H13-012 7/8'' 0.901 1.59 0.285 0.3 0.015 27720 FT-H13-013 1'' 1.03 1.81 0.233 0.256 0.023 18180 FT-H13-014 1'' 1.03 1.81 0.283 0.302 0.019 27270 FT-H13-015 1'' 1.03 1.81 0.326 0.342 0.016 36360 FT-H13-016 1 1/8'' 1.155 2.025 0.266 0.291 0.025 23700 FT-H13-017 1 1/8'' 1.155 2.025 0.323 0.344 0.021 35550 FT-H13-018 1 1/8'' 1.155 2.025 0.372 0.39 0.018 47400 FT-H13-019 1 1/4'' 1.281 2.24 0.206 0.24 0.03 20000 FT-H13-020 1 1/4'' 1.281 2.31 0.301 0.33 0.029 30000 FT-H13-021 1 1/4'' 1.281 2.31 0.376 0.4 0.024 45000 FT-H13-022 1 1/4'' 1.281 2.31 0.422 0.443 0.021 60000 FT-H13-023 1 3/8'' 1.406 2.47 0.332 0.362 0.03 36990 FT-H13-024 1 3/8'' 1.406 2.47 0.404 0.429 0.025 55485 FT-H13-025 1 3/8'' 1.406 2.47 0.465 0.487 0.022 73980 FT-H13-026 1 1/2'' 1.531 2.68 0.364 0.396 0.032 44760 FT-H13-027 1 1/2'' 1.531 2.68 0.443 0.47 0.027 67140 FT-H13-028 1 1/2'' 1.531 2.68 0.51 0.533 0.023 89520 FT-H13-029 1 5/8'' 1.649 2.95 0.4 0.435 0.035 53400 FT-H13-030 1 5/8'' 1.649 2.95 0.487 0.516 0.029 80100 FT-H13-031 1 5/8'' 1.649 2.95 0.56 0.586 0.026 106800 FT-H13-032 1 3/4'' 1.774 3.17 0.432 0.47 0.038 62400 FT-H13-033 1 3/4'' 1.774 3.17 0.526 0.557 0.031 93600 FT-H13-034 1 3/4'' 1.774 3.17 0.605 0.633 0.028 124800 FT-H13-035 1 7/8'' 1.899 3.389 0.465 0.505 0.04 72300 FT-H13-036 1 7/8'' 1.899 3.389 0.566 0.599 0.033 108450 FT-H13-037 1 7/8'' 1.899 3.389 0.581 0.614 0.033 114475 FT-H13-038 2'' 2.024 3.6 0.498 0.54 0.042 83500 FT-H13-039 2'' 2.024 3.6 0.606 0.641 0.035 124650 FT-H13-040 2'' 2.024 3.6 0.622 0.656 0.034 131575 FT-H13-041 2 1/8'' 2.156 3.773 0.531 0.572 0.041 96300 FT-H13-042 2 1/4'' 2.281 4.04 0.563 0.61 0.047 106800 FT-H13-043 2 1/4'' 2.281 4.04 0.686 0.725 0.039 160200 FT-H13-044 2 1/4'' 2.281 4.04 0.704 0.742 0.038 169100 FT-H13-045 2 1/2'' 2.531 4.483 0.629 0.681 0.052 133200 FT-H13-046 2 1/2'' 2.531 4.483 0.766 0.809 0.043 199800 FT-H13-047 2 1/2'' 2.531 4.483 0.786 0.828 0.042 210900 FT-H13-048 2 3/4'' 2.781 4.92 0.695 0.752 0.057 162900 FT-H13-049 2 3/4'' 2.781 4.92 0.847 0.894 0.047 244350 FT-H13-050 2 3/4'' 2.781 4.92 0.869 0.915 0.046 257925 FT-H13-051 3'' 3.031 4.94 0.5 0.568 0.068 84110 FT-H13-052 3'' 3.031 5.36 0.761 0.822 0.061 195300 FT-H13-053 3'' 3.031 5.36 0.951 1.003 0.051 292950 FT-H13-054 3'' 3.031 5.36 0.952 1.002 0.05 309225 FT-H13-055 3 1/4'' 3.306 5.81 0.77 0.837 0.067 202050 FT-H13-056 3 1/4'' 3.306 5.81 0.98 1.033 0.053 332872 FT-H13-057 3 1/4'' 3.306 5.81 1.037 1.087 0.05 551806 FT-H13-058 3 1/2'' 3.53 6.125 0.841 0.901 0.06 240354 FT-H13-059 3 1/2'' 3.53 6.125 1.024 1.08 0.056 360330 FT-H13-060 3 1/2'' 3.53 6.125 1.179 1.227 0.048 480458 FT-H13-061 3 3/4'' 3.812 6.671 0.871 0.948 0.077 274250 FT-H13-062 3 3/4'' 3.812 6.671 1.062 1.126 0.064 412800 FT-H13-063 3 3/4'' 3.812 6.671 1.222 1.278 0.056 550080 FT-H13-064 4'' 4.054 7.135 0.97 1.05 0.08 321415 FT-H13-065 4'' 4.054 7.135 1.18 1.247 0.067 481141 FT-H13-066 4'' 4.054 7.135 1.359 1.417 0.058 642053

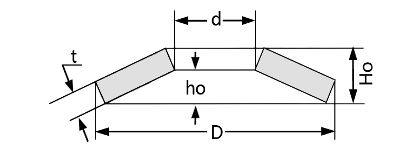

Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-177-001 3/8'' 0.386 0.714 0.083 0.091 0.008 2800 FT-177-002 7/16'' 0.45 0.82 0.083 0.093 0.01 2800 FT-177-003 1/2'' 0.512 0.9 0.083 0.094 0.011 2775 FT-177-004 1/2'' 0.515 0.9 0.095 0.105 0.01 3700 FT-177-005 5/8'' 0.64 1.148 0.125 0.137 0.012 6400 FT-177-006 5/8'' 0.644 1.14 0.095 0.11 0.015 3585 FT-177-007 5/8'' 0.644 1.148 0.117 0.13 0.013 6500 FT-177-008 3/4'' 0.773 1.37 0.117 0.135 0.018 5500 FT-177-009 3/4'' 0.773 1.37 0.136 0.152 0.016 8500 FT-177-010 7/8'' 0.901 1.59 0.155 0.174 0.019 12500 FT-177-011 1'' 1.03 1.81 0.155 0.179 0.024 9600 FT-177-012 1'' 1.03 1.81 0.193 0.21 0.017 18000 FT-177-013 1'' 1.032 1.805 0.168 0.195 0.023 8600 FT-177-014 1 1/8'' 1.155 2.025 0.193 0.218 0.025 20000 FT-177-015 1 1/4'' 1.281 2.31 0.193 0.224 0.031 20000 FT-177-016 1 1/4'' 1.281 2.31 0.27 0.296 0.026 30000 FT-177-017 1 3/8'' 1.406 2.47 0.25 0.284 0.028 25000 FT-177-018 1 3/8'' 1.406 2.47 0.375 0.394 0.019 58000 FT-177-019 1 1/2'' 1.531 2.68 0.193 0.233 0.04 14500 FT-177-020 1 1/2'' 1.531 2.68 0.25 0.284 0.034 26000 FT-177-021 1 5/8'' 1.649 2.95 0.262 0.299 0.037 27000 FT-177-022 1 5/8'' 1.649 2.95 0.468 0.49 0.022 92000 FT-177-023 1 3/4'' 1.774 3.17 0.28 0.323 0.043 31000 FT-177-024 1 3/4'' 1.774 3.171 0.47 0.495 0.025 65685 FT-177-025 1 7/8'' 1.91 3.389 0.3 0.345 0.045 33000 FT-177-026 2'' 2.024 3.6 0.5 0.535 0.035 110000 FT-177-027 2'' 2.063 3.6 0.318 0.368 0.05 40000 FT-177-028 2 1/8'' 2.173 3.5 0.318 0.36 0.043 40000 FT-177-029 2 1/4'' 2.281 4.04 0.356 0.408 0.052 51000 FT-177-030 2 5/16'' 2.332 3.75 0.318 0.366 0.044 40000 FT-177-031 2 1/2'' 2.531 4.483 0.394 0.452 0.058 62000 FT-177-032 2 3/4'' 2.781 4.92 0.431 0.494 0.063 75000 FT-177-033 3'' 3.031 5.36 0.468 0.537 0.069 88000
Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-177-001 3/8'' 0.386 0.714 0.083 0.091 0.008 2800 FT-177-002 7/16'' 0.45 0.82 0.083 0.093 0.01 2800 FT-177-003 1/2'' 0.512 0.9 0.083 0.094 0.011 2775 FT-177-004 1/2'' 0.515 0.9 0.095 0.105 0.01 3700 FT-177-005 5/8'' 0.64 1.148 0.125 0.137 0.012 6400 FT-177-006 5/8'' 0.644 1.14 0.095 0.11 0.015 3585 FT-177-007 5/8'' 0.644 1.148 0.117 0.13 0.013 6500 FT-177-008 3/4'' 0.773 1.37 0.117 0.135 0.018 5500 FT-177-009 3/4'' 0.773 1.37 0.136 0.152 0.016 8500 FT-177-010 7/8'' 0.901 1.59 0.155 0.174 0.019 12500 FT-177-011 1'' 1.03 1.81 0.155 0.179 0.024 9600 FT-177-012 1'' 1.03 1.81 0.193 0.21 0.017 18000 FT-177-013 1'' 1.032 1.805 0.168 0.195 0.023 8600 FT-177-014 1 1/8'' 1.155 2.025 0.193 0.218 0.025 20000 FT-177-015 1 1/4'' 1.281 2.31 0.193 0.224 0.031 20000 FT-177-016 1 1/4'' 1.281 2.31 0.27 0.296 0.026 30000 FT-177-017 1 3/8'' 1.406 2.47 0.25 0.284 0.028 25000 FT-177-018 1 3/8'' 1.406 2.47 0.375 0.394 0.019 58000 FT-177-019 1 1/2'' 1.531 2.68 0.193 0.233 0.04 14500 FT-177-020 1 1/2'' 1.531 2.68 0.25 0.284 0.034 26000 FT-177-021 1 5/8'' 1.649 2.95 0.262 0.299 0.037 27000 FT-177-022 1 5/8'' 1.649 2.95 0.468 0.49 0.022 92000 FT-177-023 1 3/4'' 1.774 3.17 0.28 0.323 0.043 31000 FT-177-024 1 3/4'' 1.774 3.171 0.47 0.495 0.025 65685 FT-177-025 1 7/8'' 1.91 3.389 0.3 0.345 0.045 33000 FT-177-026 2'' 2.024 3.6 0.5 0.535 0.035 110000 FT-177-027 2'' 2.063 3.6 0.318 0.368 0.05 40000 FT-177-028 2 1/8'' 2.173 3.5 0.318 0.36 0.043 40000 FT-177-029 2 1/4'' 2.281 4.04 0.356 0.408 0.052 51000 FT-177-030 2 5/16'' 2.332 3.75 0.318 0.366 0.044 40000 FT-177-031 2 1/2'' 2.531 4.483 0.394 0.452 0.058 62000 FT-177-032 2 3/4'' 2.781 4.92 0.431 0.494 0.063 75000 FT-177-033 3'' 3.031 5.36 0.468 0.537 0.069 88000
Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-NAS-001 5/16'' 0.322 0.58 0.077 0.084 0.005 2450 FT-NAS-002 3/8'' 0.386 0.714 0.08 0.088 0.008 2900 FT-NAS-003 7/16'' 0.45 0.82 0.077 0.087 0.01 2400 FT-NAS-004 1/2'' 0.515 0.9 0.09 0.1 0.01 3300 FT-NAS-005 1/2'' 0.515 0.9 0.125 0.133 0.008 6500 FT-NAS-006 5/8'' 0.644 1.148 0.125 0.137 0.012 6400 FT-NAS-007 3/4'' 0.773 1.37 0.125 0.142 0.017 6300 FT-NAS-008 3/4'' 0.773 1.37 0.193 0.204 0.011 12000 FT-NAS-009 7/8'' 0.901 1.59 0.156 0.175 0.019 9800 FT-NAS-010 7/8'' 0.901 1.59 0.25 0.267 0.012 26400 FT-NAS-011 1'' 1.03 1.8 0.084 0.122 0.038 2100 FT-NAS-012 1'' 1.03 1.81 0.187 0.207 0.02 14240 FT-NAS-013 1'' 1.03 1.81 0.25 0.27 0.015 26000 FT-NAS-014 1'' 1.032 1.805 0.172 0.196 0.027 11950 FT-NAS-015 1 1/8'' 1.155 2.025 0.193 0.226 0.024 15400 FT-NAS-016 1 1/8'' 1.155 2.025 0.25 0.274 0.019 25000 FT-NAS-017 1 1/4'' 1.281 2.31 0.156 0.194 0.038 9300 FT-NAS-018 1 1/4'' 1.281 2.31 0.187 0.235 0.031 15100 FT-NAS-019 1 1/4'' 1.281 2.31 0.255 0.28 0.025 25000 FT-NAS-020 1 1/4'' 1.281 2.31 0.375 0.397 0.017 59000 FT-NAS-021 1 3/8'' 1.406 2.47 0.156 0.199 0.043 9000 FT-NAS-022 1 3/8'' 1.406 2.47 0.25 0.278 0.028 25400 FT-NAS-023 1 3/8'' 1.406 2.47 0.375 0.394 0.019 58000 FT-NAS-024 1 3/8'' 1.406 2.47 0.46 0.479 0.019 87000 FT-NAS-025 1 3/8'' 1.406 2.47 0.48 0.499 0.019 98900 FT-NAS-026 1 1/2'' 1.531 2.68 0.156 0.204 0.054 9000 FT-NAS-027 1 1/2'' 1.531 2.68 0.187 0.241 0.041 13500 FT-NAS-028 1 1/2'' 1.531 2.68 0.225 0.26 0.035 20000 FT-NAS-029 1 1/2'' 1.531 2.68 0.375 0.397 0.022 58000 FT-NAS-030 1 5/8'' 1.649 2.95 0.172 0.226 0.054 10000 FT-NAS-031 1 5/8'' 1.65 2.95 0.193 0.242 0.049 14200 FT-NAS-032 1 5/8'' 1.65 2.95 0.262 0.3 0.038 27500 FT-NAS-033 1 7/8'' 1.899 3.389 0.45 0.481 0.031 84500 FT-NAS-034 2'' 2.024 3.6 0.5 0.532 0.032 103725 FT-NAS-035 2'' 2.031 3.57 0.193 0.264 0.071 13550 FT-NAS-036 2'' 2.032 3.6 0.356 0.4 0.044 51825 FT-NAS-037 2'' 2.063 3.6 0.318 0.363 0.045 40150
Item no. Bolt Size IDmin ODmax THK(T) OH(H) Def(h) inch Load FT-NAS-001 5/16'' 0.322 0.58 0.077 0.084 0.005 2450 FT-NAS-002 3/8'' 0.386 0.714 0.08 0.088 0.008 2900 FT-NAS-003 7/16'' 0.45 0.82 0.077 0.087 0.01 2400 FT-NAS-004 1/2'' 0.515 0.9 0.09 0.1 0.01 3300 FT-NAS-005 1/2'' 0.515 0.9 0.125 0.133 0.008 6500 FT-NAS-006 5/8'' 0.644 1.148 0.125 0.137 0.012 6400 FT-NAS-007 3/4'' 0.773 1.37 0.125 0.142 0.017 6300 FT-NAS-008 3/4'' 0.773 1.37 0.193 0.204 0.011 12000 FT-NAS-009 7/8'' 0.901 1.59 0.156 0.175 0.019 9800 FT-NAS-010 7/8'' 0.901 1.59 0.25 0.267 0.012 26400 FT-NAS-011 1'' 1.03 1.8 0.084 0.122 0.038 2100 FT-NAS-012 1'' 1.03 1.81 0.187 0.207 0.02 14240 FT-NAS-013 1'' 1.03 1.81 0.25 0.27 0.015 26000 FT-NAS-014 1'' 1.032 1.805 0.172 0.196 0.027 11950 FT-NAS-015 1 1/8'' 1.155 2.025 0.193 0.226 0.024 15400 FT-NAS-016 1 1/8'' 1.155 2.025 0.25 0.274 0.019 25000 FT-NAS-017 1 1/4'' 1.281 2.31 0.156 0.194 0.038 9300 FT-NAS-018 1 1/4'' 1.281 2.31 0.187 0.235 0.031 15100 FT-NAS-019 1 1/4'' 1.281 2.31 0.255 0.28 0.025 25000 FT-NAS-020 1 1/4'' 1.281 2.31 0.375 0.397 0.017 59000 FT-NAS-021 1 3/8'' 1.406 2.47 0.156 0.199 0.043 9000 FT-NAS-022 1 3/8'' 1.406 2.47 0.25 0.278 0.028 25400 FT-NAS-023 1 3/8'' 1.406 2.47 0.375 0.394 0.019 58000 FT-NAS-024 1 3/8'' 1.406 2.47 0.46 0.479 0.019 87000 FT-NAS-025 1 3/8'' 1.406 2.47 0.48 0.499 0.019 98900 FT-NAS-026 1 1/2'' 1.531 2.68 0.156 0.204 0.054 9000 FT-NAS-027 1 1/2'' 1.531 2.68 0.187 0.241 0.041 13500 FT-NAS-028 1 1/2'' 1.531 2.68 0.225 0.26 0.035 20000 FT-NAS-029 1 1/2'' 1.531 2.68 0.375 0.397 0.022 58000 FT-NAS-030 1 5/8'' 1.649 2.95 0.172 0.226 0.054 10000 FT-NAS-031 1 5/8'' 1.65 2.95 0.193 0.242 0.049 14200 FT-NAS-032 1 5/8'' 1.65 2.95 0.262 0.3 0.038 27500 FT-NAS-033 1 7/8'' 1.899 3.389 0.45 0.481 0.031 84500 FT-NAS-034 2'' 2.024 3.6 0.5 0.532 0.032 103725 FT-NAS-035 2'' 2.031 3.57 0.193 0.264 0.071 13550 FT-NAS-036 2'' 2.032 3.6 0.356 0.4 0.044 51825 FT-NAS-037 2'' 2.063 3.6 0.318 0.363 0.045 40150
