DIN6796

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

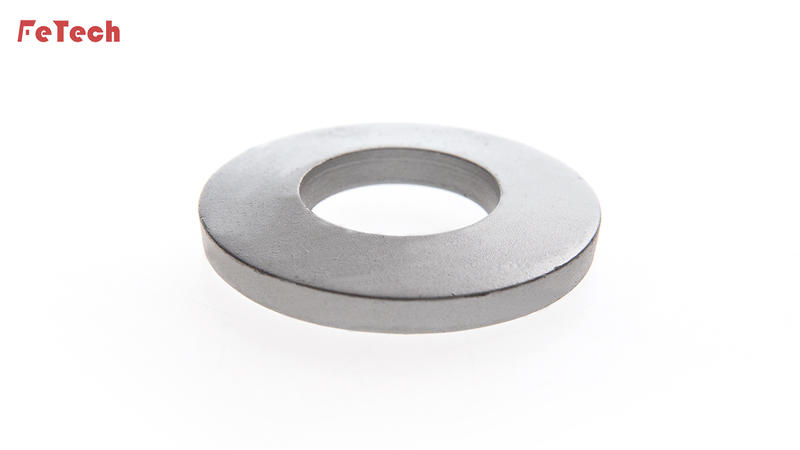

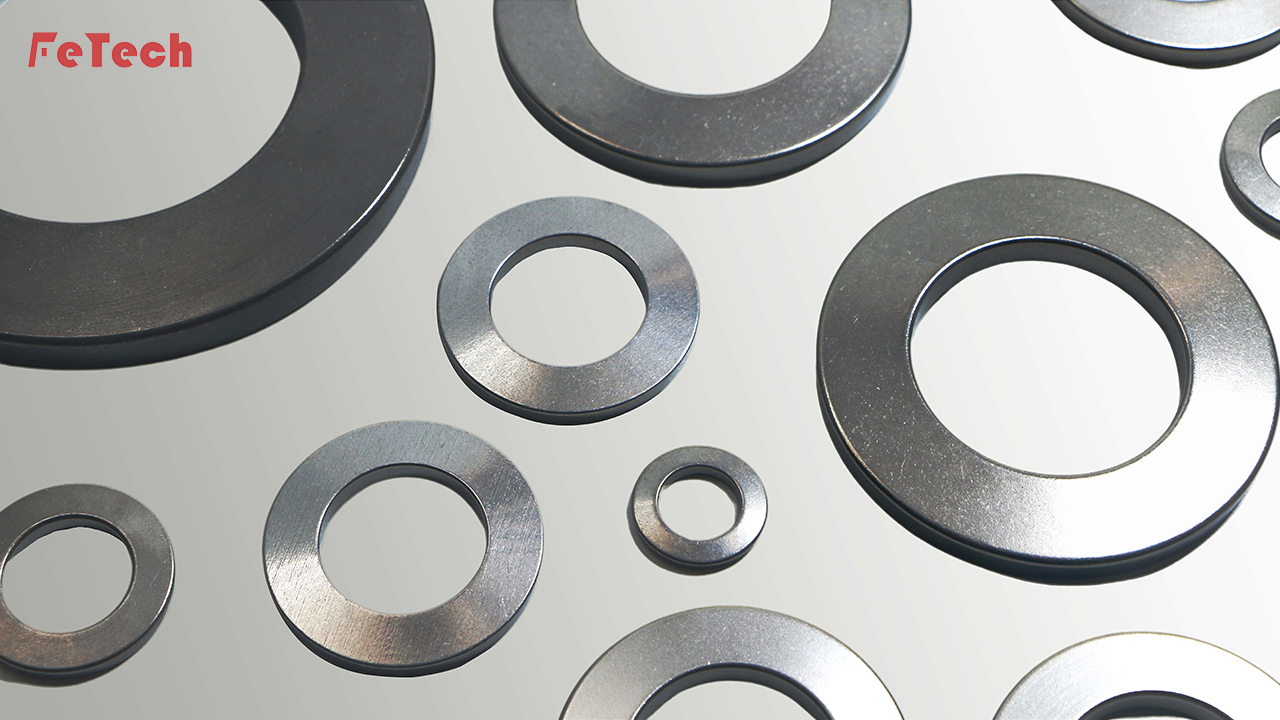

DIN6796 washers are used in a variety of applications across virtually every industry that maintains bolted connections. The washer is not an insignificant engineering contribution—by combining washers in stacks or series or including them in other bolt assemblies, longer service life, lower maintenance and high levels of equipment dependability and safety are realized.
Availability:

DIN6796 washers are used in a variety of applications across virtually every industry that maintains bolted connections. The washer is not an insignificant engineering contribution—by combining washers in stacks or series or including them in other bolt assemblies, longer service life, lower maintenance and high levels of equipment dependability and safety are realized.


Specifications & Materials:

Standard Material: 51CrV4…

Corrosion Resistant Alloy Steel: SUS316/SUS631/Incoloy825…

Heat-stable Alloy Steel: 30WCrV17-2/X40CrMo5-1…

Antimagnetic and Corrosion Resistant Alloy: CuBe2…

Nickel and Cobalt Alloy Steel: Inconel X-750/Inconel718/Nimonic90…

For more materials, please click on the "Material" tab above >> click


* DIN6796 specifications

* Off-standard washers can be produced. Welcome your requirements.


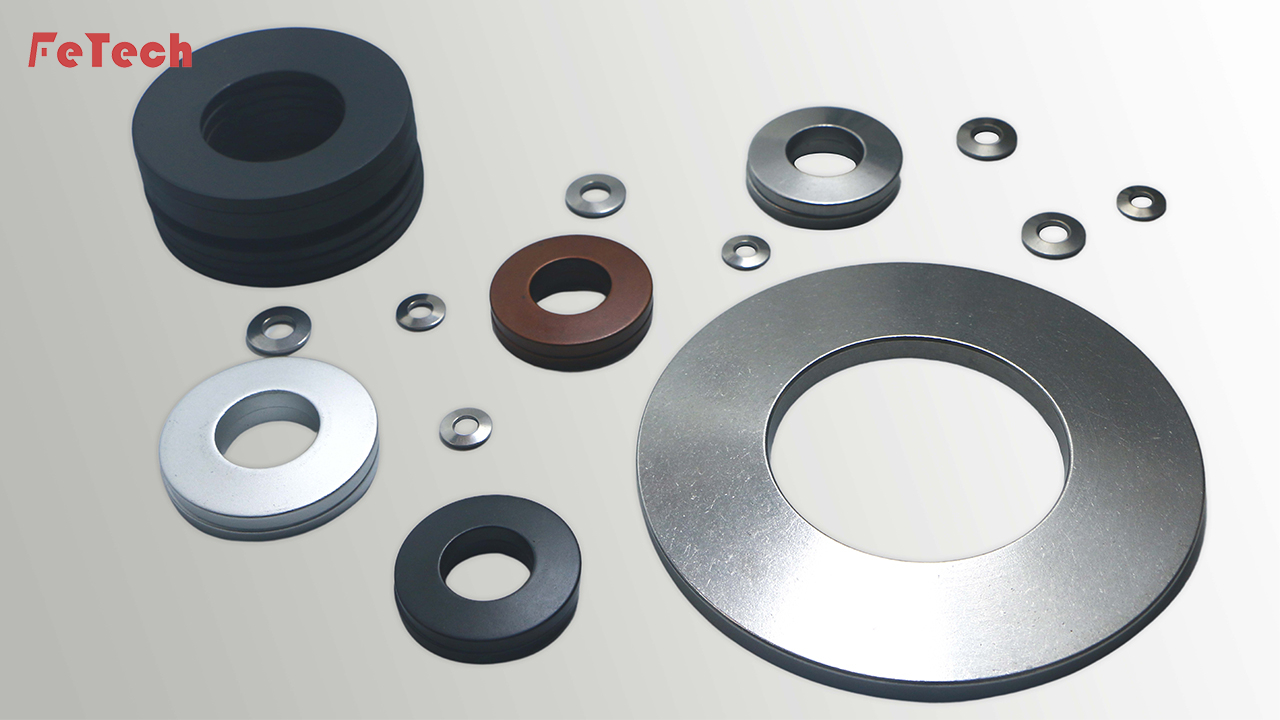

Protective Surface Treatment

 phosphatizing

 hot-galvanizing

 zinc plating

electrophoresis

 DAC

 GEOMET


Q: Should one or two washers be used on a bolt?

A: Depending on the application about 90% of the time, the most common bolting arrangement is to have one piece on each side of the joint. On the other hand, there are many applications where a single washer adds enough elasticity to the system. Conversely, there are other situations where three or more washers may be needed for a sound design.
Please contact us. FeTech engineer can give the right suggestions.

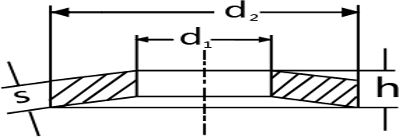

6796


Item no. Size d1
mm
d2
mm
s           mm h max                       mm h min                         mm Spring load                  N Bolt Size
Metric
mm
Imperial
inch
FT100600 M2 2.20 5.00 0.40 0.60 0.50 628 2
FT100601 M2.5 2.70 6.00 0.50 0.72 0.61 946 2.5
FT100602 M3 3.20 7.00 0.60 0.85 0.72 1320 3 1/8''
FT100603 M3.5 3.70 8.00 0.80 1.06 0.92 2410 3.5
FT100604 M4 4.30 9.00 1.00 1.30 1.12 3770 4 5/32''
FT100605 M5 5.30 11.00 1.20 1.55 1.35 5480 5 3/16''
FT100606 M6 6.40 14.00 1.50 2.00 1.70 8590 6 (1/4'')
FT100607 M7 7.40 17.00 1.75 2.30 2.00 11300 7
FT100608 M8 8.40 18.00 2.00 2.60 2.24 14900 8 5/16''
FT100609 M10 10.50 23.00 2.50 3.20 2.80 22100 10 3/8''
FT100610 M12 13.00 29.00 3.00 3.95 3.43 34100 12 (1/2'')
FT100611 M14 15.00 35.00 3.50 4.65 4.14 46000 14 9/16''
FT100612 M16 17.00 39.00 4.00 5.25 4.58 59700 16 5/8''
FT100613 M18 19.00 42.00 4.50 5.80 5.08 74400 18
FT100614 M20 21.00 45.00 5.00 6.40 5.60 93200 20 (3/4'')
FT100615 M22 23.00 49.00 5.50 7.05 6.15 113700 22 7/8''
FT100616 M24 25.00 56.00 6.00 7.75 6.77 131000 24
FT100617 M27 28.00 60.00 6.50 8.35 7.30 154000 27 (1'')
FT100618 M30 31.00 70.00 7.00 9.20 8.00 172000 30 1 1/8''



Material DesignationTemperature Range     ℃Thickness Range     mmTensile Strength     N/mm2Density         kg/dm3E-modulus in kN/mm2
ChinaGermanyMaterial no.U.S.RT℃100℃200℃300℃400℃500℃600℃















Standard requirements













60Si2MnA60SiCr71.71089260H-50…+1770.3...221400-20007.85206202196----
50CrVA51CrV41.81596150-50…+1770.3…301400-20007.85206202196----















Corrosion Resistant













1Cr17Ni7X 12CrNi17 71.4310301-200…+2000.2....41100-15007.90190186180----
0Cr18Ni9X 5CrNi18 101.4301304-200…+2000.2....41100-18007.90190186180----
0Cr17Ni12Mo2NX 5CrNiMo17 12 21.4401316-200…+2000.2....4950-15007.90190186180----
0Cr17Ni4Cu4NbX 5CrNiCuNb 16-41.4542630-240…+3000.2...501000-17007.90195190180171---
0Cr17Ni7AlX 7CrNiAl 17-71.4568631-240…+3000.2...501000-17007.90195190180171---
0Cr15Ni7Mo2AlX 8CrNiMoAl 15-7-21.4532632-240…+3550.2...501000-17007.90195190180171---
NS142NiCr21Mo2.4858Incoloy 825-200…+3300.1..…2≥5508.10220218208202---















Heat-stable













30W4Cr2VX 30WCrV 5 31.2567   1.8242--50…+4501.5...501200-14008.20206202196189178--
2Cr12MoVX 22CrMoV12 11.4923--50…+5001.5...201200-14007.70209202194184173162-
X39CrMo17-1X 39CrMo17-11.4122--50…+400
1200-14007.70209205199192181--
4Cr5MoSiV1X 40CrMo5-11.2344H13-50…+6001.5...501100-17407.85210206202195190182175















Antimagentic&Corrosion Resistant












CuBe2CuBe22.1247--260…+2000.1...201250-14508.30135131125----















Highly heat-stable (Nickel & Cobalt alloy steal)











GH145NiCr15Fe7TiAl2.4669Inconel X-750-200…+6000.1...50≥11708.28214207198190179170158
GH169NiCr19Fe19Nb5Mo32.4668Inconel 718-200…+6000.1...50≥12808.19199195190185179174167
GH90NiCr20Co18Ti2.4632LW      2.4969Nimonic 90-200…+7000.1...50≥13108.18220216208202193187178
S816----200…+8150.1...50≥13208.30225220216211205199190
